Master 6

Master 3

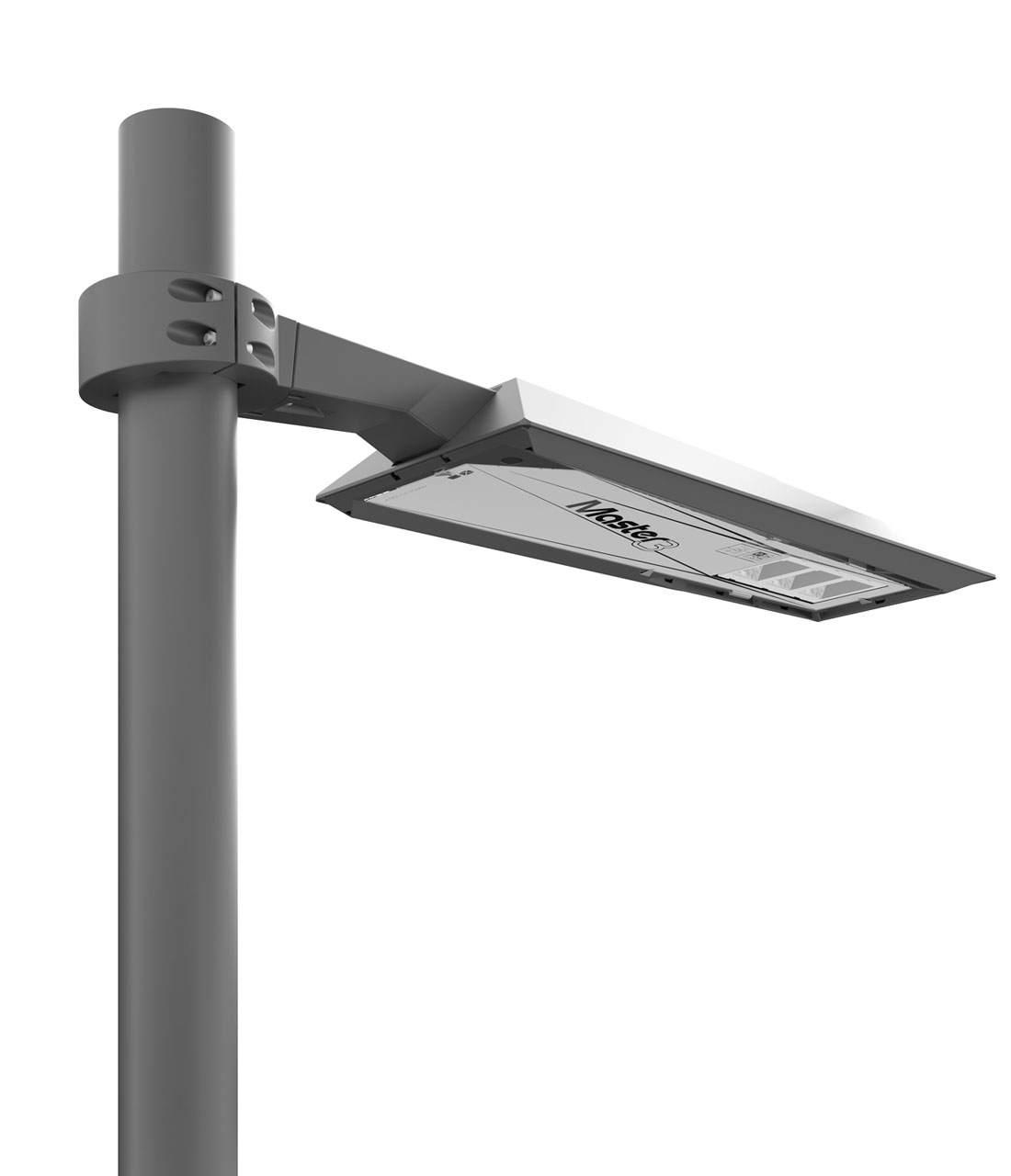

MASTER has been developed for a wide range of urban applications. The luminaire is available in two different shapes. AEC has developed a series not only of the highest design but also of maximum functionality and performance. Master is a solution that brings together the best of LED technology with the uniqueness of the shapes.

MASTER series ensures the advantages of the most advanced LED technology thanks to an optical system that allows maximum installation flexibility and excellent lighting performance. With MASTER, cities are transformed into appreciated urban environments, where lighting is the protagonist at night thanks to a comfortable and safe light.

Download Files:

STE-M OPTIC (TYPE II)
IES TYPE
STU-M OPTIC (TYPE II)
IES TYPE
STU-S OPTIC (TYPE II)
IES TYPE
STW OPTIC (TYPE II)
IES TYPE
S05 OPTIC (TYPE IV)
IES TYPE
STE-S OPTIC (TYPE II)
IES TYPE


Applications: Street and urban lighting.
Tilt angle: 0°
Weight: 17.6 lbs  / 8 kg
EPA:   Side: 0.54 ft2 (0.05m2)

               Top: 2.48 ft2 (0.23m2)

(Cross Section Surface)
Use Drag coefficient factor - 0.5

Mounting: M3 - 3” x 4 ”L (76 mm x 100 mm L)
                           M4 - 4” x 4 ”L (102 mm x 100 mm L)
                           M4C - 4 1/2” (Ø114 mm)
                           M5 - 5” (Ø127 mm)
Power Factor: >0.95 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)

Optical unit lifetime

(Ta: 77°F/25°C)

350 mA:  L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
525 mA:  L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
700 mA:  L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21

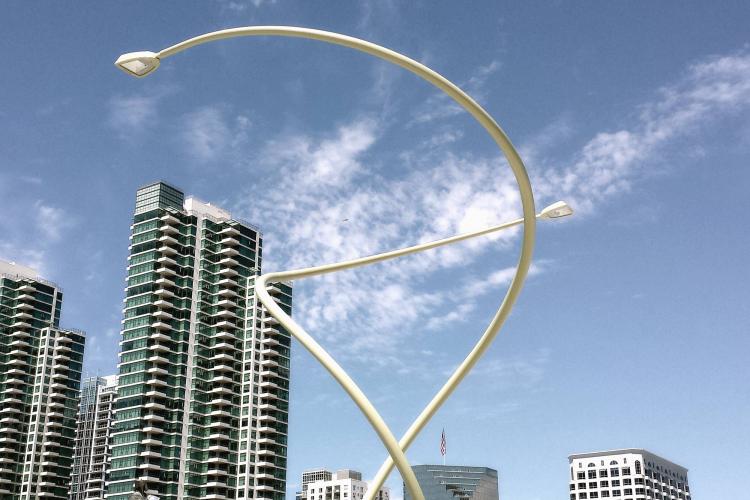

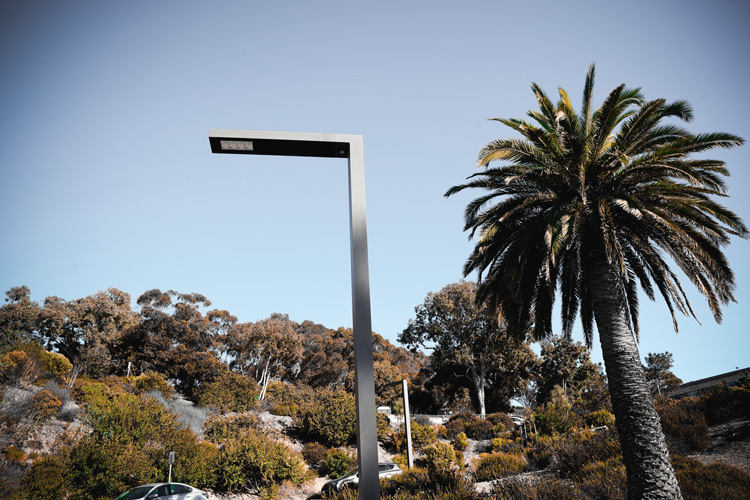

NEVP San Diego

NEVP San Diego

Milan

Milan invests in the future of their city with cutting edge LED street lighting

London Elephant & Castle District

London Elephant & Castle District

Nador

Nador Morocco

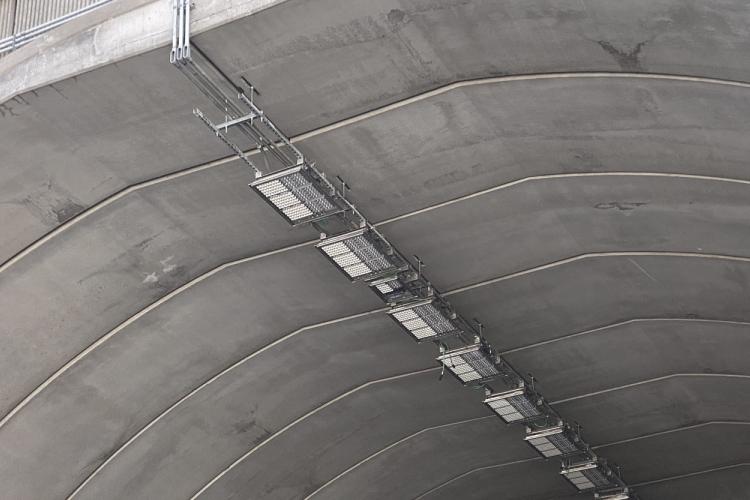

Hålogaland Bridge Norway

Hålogaland Bridge Norway
