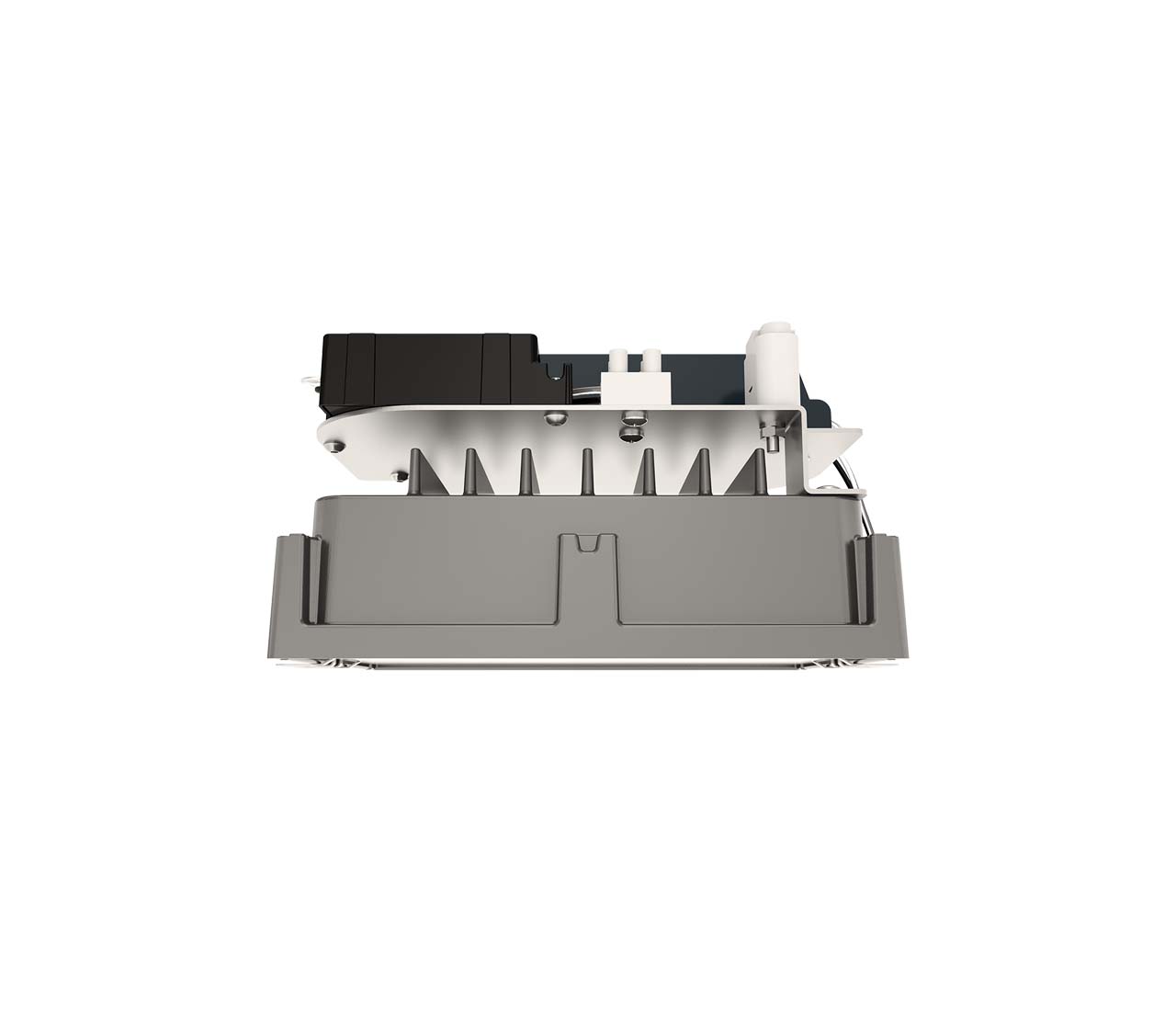

iBox Smart

iBox is a kit developed by AEC to adapt historic lanterns and pre-existing luminaires to the latest LED technology to achieve high-level lighting performance and high energy savings. The retrofit kit guarantees flexibility of use thanks to the customizable fixing plates. The advantageous AEC solution allows to upgrade artistic lanterns, preserving their aesthetics, with a reduced investment. iBox, is a certified product for maximum security and reliability over time.

iBox Smart (optical unit protection degree IP66 and gear tray IP20) is the version with the tele-management system WL or with DALI option. This particular version can only be installed in luminaires with IP ≥ 55.

Download Files:

S OPTIC (TYPE VS)
IES TYPE
STE-M OPTIC (TYPE II)
IES TYPE
STU-M OPTIC (TYPE II)
IES TYPE
STU-S OPTIC (TYPE II)
IES TYPE
STW OPTIC (TYPE II)
IES TYPE
S05 OPTIC (TYPE IV)
IES TYPE
TS OPTIC (TYPE I)
IES TYPE
STE-S OPTIC (TYPE II)
IES TYPE
SV2 OPTIC (TYPE I)
IES TYPE
SV OPTIC (TYPE II)
IES TYPE

iBox smart 1M-2M


Applications: Street and urban lighting.
Tilt angle: 0°
Weight: 4 lbs / 1.8 kg
EPA:   Side: 0.20 ft2 (0.02m2)

               Top: 0.47 ft2 (0.04m2)

(Cross Section Surface)
Use Drag coefficient factor - 0.5

Mounting: Plate mounting
Power Factor: >0.9 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)

Optical unit lifetime

(Ta: 77°F/25°C)

525 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
700 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21

iBox smart 3M-4M


Applications: Street and urban lighting.
Tilt angle: 0°
Weight: 6.6 lbs / 3 kg
EPA:   Side: 0.25 ft2 (0.02m2)

               Top: 0.54 ft2 (0.05m2)

(Cross Section Surface)
Use Drag coefficient factor - 0.5

Mounting: Plate mounting
Power Factor: >0.9 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)

Optical unit lifetime

(Ta: 77°F/25°C)

525 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
700 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
